Universal Towbar
Model: HTB45-HD
The HTB45-HD is an heavy duty version of our popular Heli Tow Bar for Robinsons. It features the same high quality construction. It has been made to sustain more weight in order to cater to as many helicopter types as possible. It also features our AT45 Univeral Attachment bar to fit all those helicopters.
| Operation: | Easy one man operation with small utility vehicule such as golf cart or quad. Can also be used manually with foldable handle. |
|---|---|
| Construction: | Heavy Duty - 1" (25mm) axle Full Rubber 10" x 3" (25cm x7.6cm) Double ball bearing mounted hubs Reinforced jack head to support quick connect system. |
| Dimensions & Weight: |
Length: 120" (305cm) Width: 28" (71cm) Weight: 175 lbs (79.5kg) |
| Included Attachment |

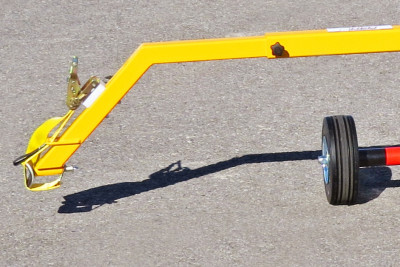

AT45 - Yellow Universal Attachment Supplied with quick connect jack head to be able to quickly interchange attachment system from yellow AT45 universal attachment bar to optional AT44 Robinsons attachment hook. |

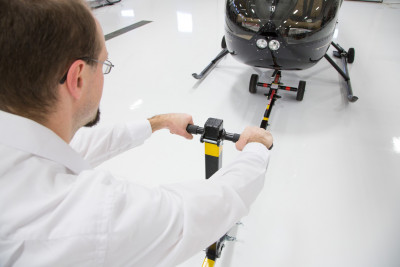

| Foldable Handle | The included foldable handle allows users to move a helicopter manually as well as with a vehicule. It can then be folded when coupled with a vehicule or simply to save space for storage. |
| MANUFACTURER | MODEL |
|---|---|
|
Robinson Robinson specific attachement AT44 recommended (See Options) |
R22 |
| R44 | |
| R66 | |
| Airbus Helicopters formerly Eurocopter |
AS 350 (H125) |
| H120 (EC120) | |
| H130 (EC130) | |
| H135 (EC135) | |
| H145 (EC145) | |
| BK 117 | |
| Bell | B206B |
| B206L | |
| B407 | |
| B427 | |
| B205-B412 | |
| Leonardo formerly Agusta Westland |
AW109 (Skidded Version) |
| AW119 | |
|
Enstrom |
28F, 280, 480 |
| P/N | Option | Description | Images |
|---|---|---|---|
| AT44 | Robinson Attachment System |
Easily change your attachement with the AT44 to support Robinson R22, R44 and R66 helicopters |
|
Available Couplers
(one included with the Towbar)
| Coupler | Description | Images |
|---|---|---|
| 2" (50.8mm) Trailer Coupler | This coupler allows mounting a 2" (50.8mm) hitch ball |  |
| 1 7/8" (47mm) Trailer Coupler | This coupler allows mounting a 1 7/8" (47.6mm) hitch ball | |
| O-Ring | This coupler is often used with airport tugs |  |
Universal Towbars Photo Gallery

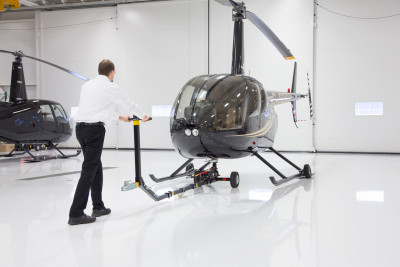

Universal Towbar with Robinson 44
Universal Towbar with Robinson 44
Universal Towbar with Robinson 44

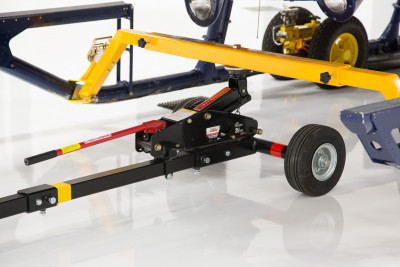

Universal Towbar Jack with AT44 Attachment System

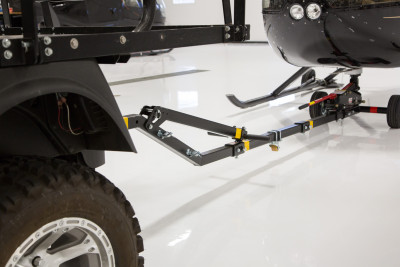

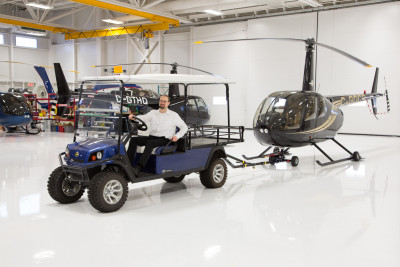

Towbar with a R44 coupled with Golf Cart

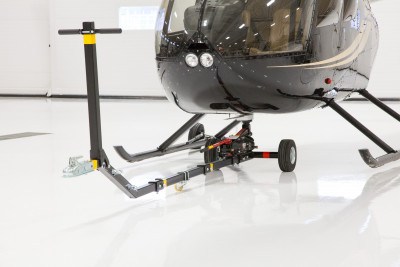

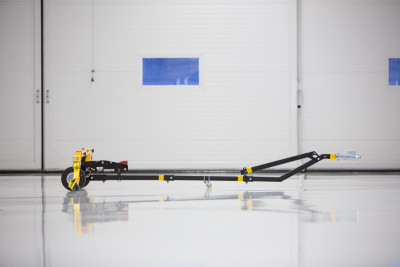

Towbar with foldable arm closed

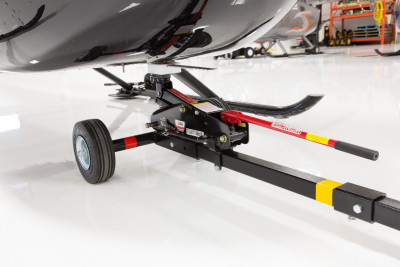

Rearview of Towbar with AT44 Attachment System

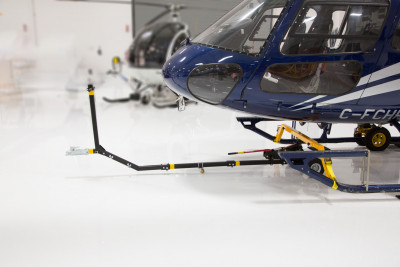

Universal Towbar with AS350
Universal Towbar with AS350
Universal Towbar with AS350
Universal Towbar with AS350
Universal Towbar with AS350

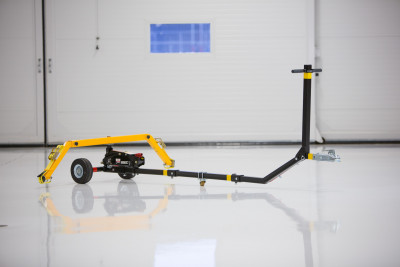

Universal Towbar for Helicopter
Universal Towbar for Helicopter

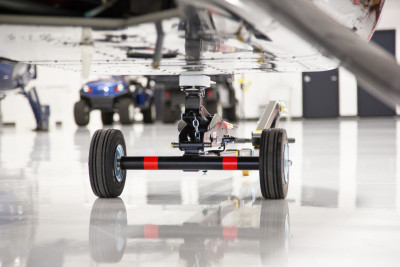

Universal Towbar attached to skid with AT45

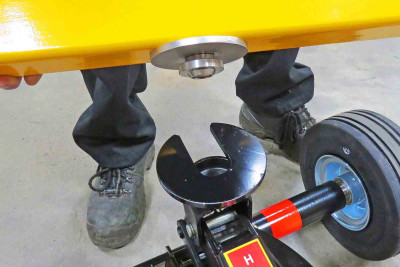

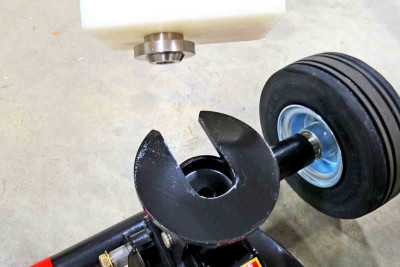

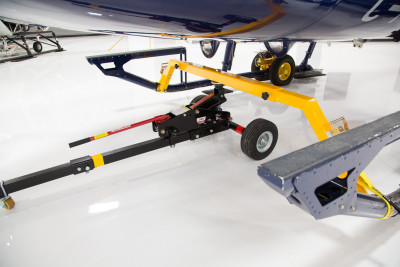

Universal Towbar with quick connect AT44 attachment system

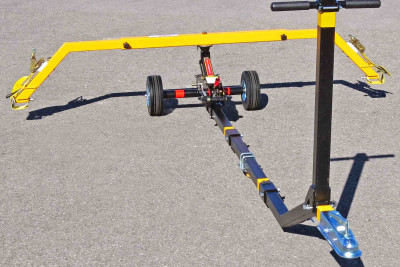

Universal Towbar with quick connect AT45 attachment system
Universal Towbar arm closeup
Universal Towbar for Helicopter
